DM-6 Digital Setting Circle (DSC)
<---- back to price list




The DM-6 was designed from the start to use Digital Setting Circles (DSC). Not an after thought. Every aspect of the mount and options are designed and manufactured to keep the mount totally orthogonal (at right angles). The box style of the mount and close proximity of the two axis guarantees the two axes are orthogonal. The way the encoders are mounted directly into the ends of the shafts to insure there is solid contact with the encoders, no gear error or belt stretching. Even the orientation of the shafts keeps the cabling safe in the box and eliminates cable wrap. Everything was designed to make sure the DSCs are as accurate as they can be.

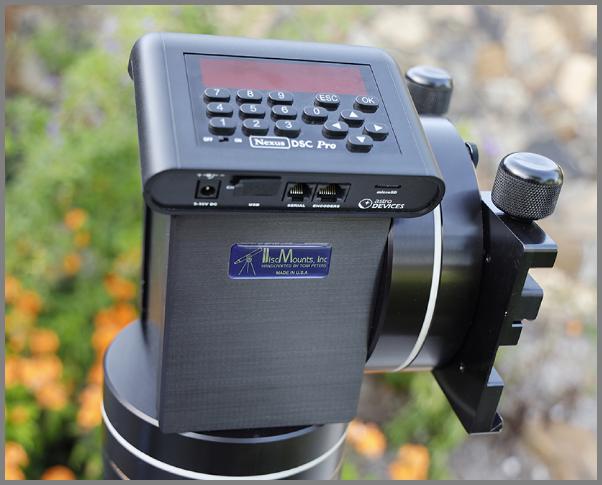

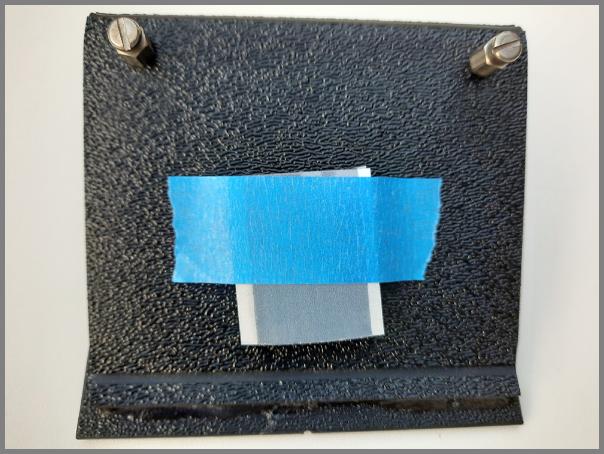

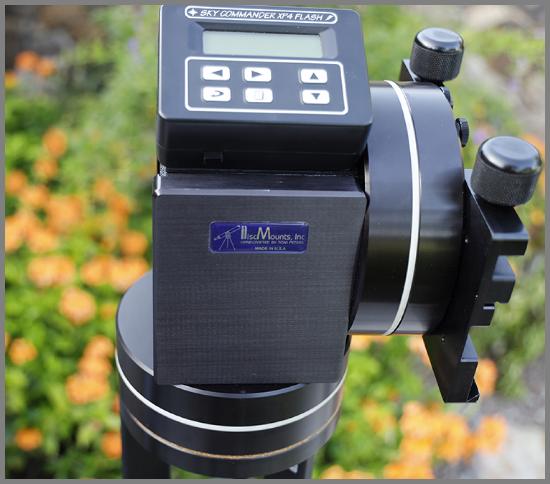

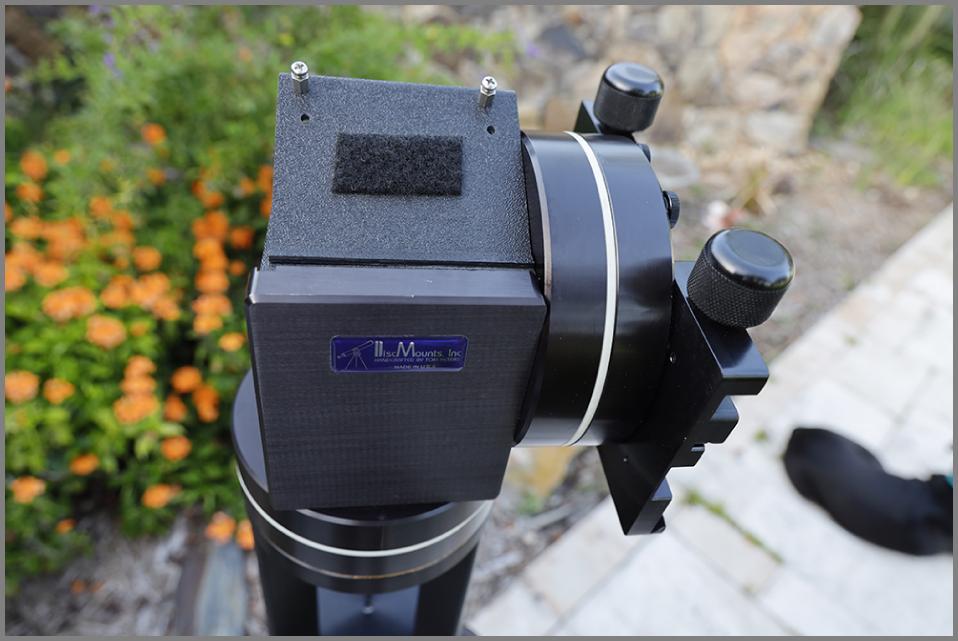

The Top Mount allows your DSC to set on top of the DM-6 at a convenient angle. The DSC is attached with Velcro to allow easy removal for transport or storage. Mounting Shelf is 4" w x 3.25" h angled.

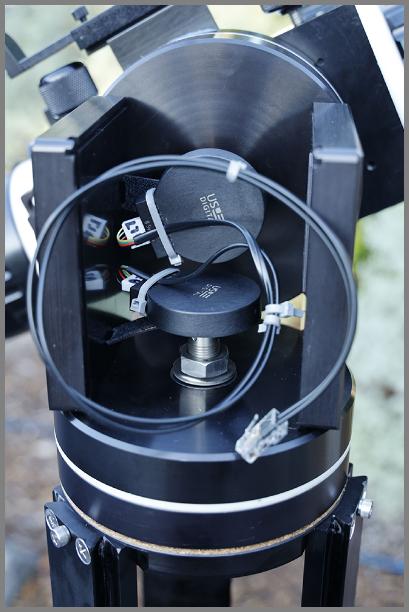

Encoders are 2” 10,000 tic Hi Resolution US Digital S2 series,
0.036 deg. each axis.



Comes with Encoders, internal cabling and Top Mounting Shelf. All you need to make your DM-6 PUSH-TO READY.
